EC centrifugal fan GR19V-4IP.Z8.AR

Protection class: IP54
Phase: 1~
Voltage: 230 V
Frequency: 60 / 50
Motor technology: ECblue

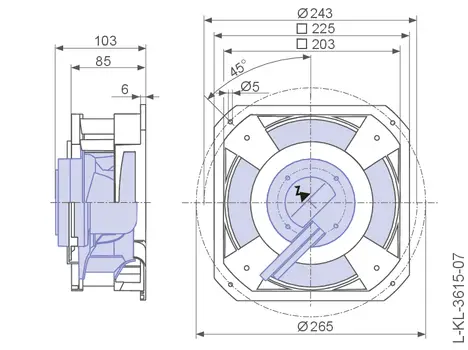

Size: 190 mm
Fan design: Ventilation unit GR
Air flow: 1012 m³/h
Pressure: 1012 Pa
Measurement category ErP: A
Air flow qv on Eta opt: 583 m³/h
Pressure increase pfs on Eta opt: 502 Pa
Input power P1 on Eta opt: 169 W
Efficiency η(statA): 56,2 %
Efficiency grade n (actual): 74,8
Efficiency grade n (target): 62
ErP: 2015
Weight: 1.80 kg

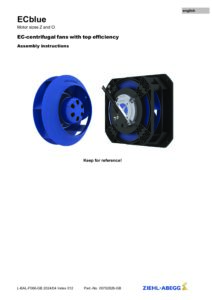

See documentation for additional information.
