Recuperator GHOST-U160 APP
Pre Order
473.70€
Available on backorder
GHOST-U 160 APP Heat Recovery Unit
- Motor housing placed inside the wall behind the heat exchanger to make the product highly silent (only Ø160);

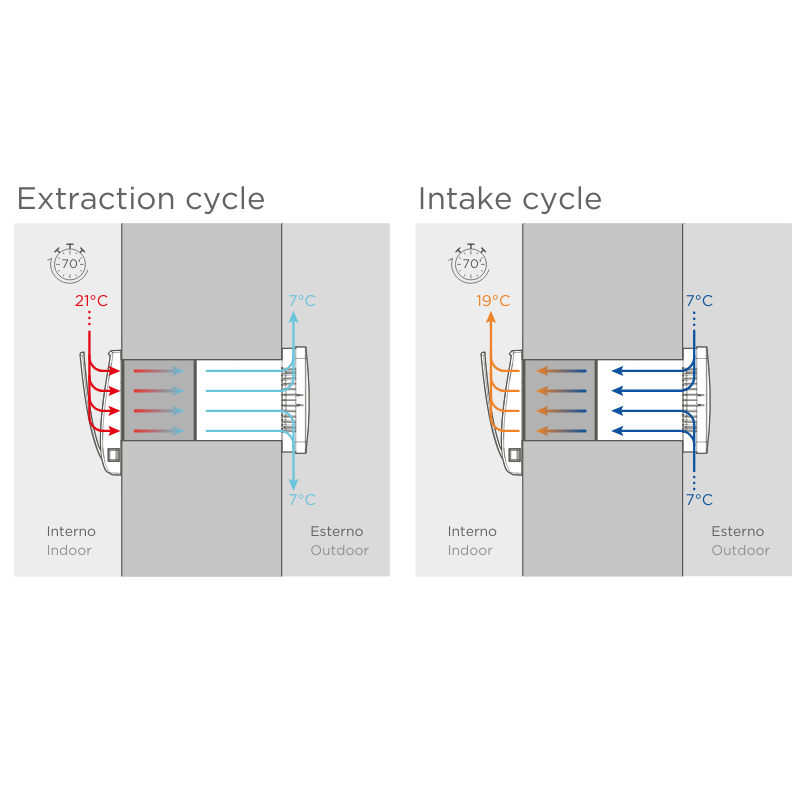

- High efficiency heat exchanger (up to 93%) made of ceramic material;
- The heat exchanger is 50% longer than market standards (150 mm instead of 100 mm), ensuring a 5% increase in average thermal efficiency (Ø160 only).
- Possibility to install the product as built-in version thanks to the Built-in Kit (available separately as an accessory);
- Turbo function that allows a flow rate of up to 90 m³/h.
- Made of long life, high quality finest materials, with elegant design.
- Frontal cover in ABS and external grille in ASA, a noble material that resists to UV rays, heat, bumps and aging, and therefore perfectly suited for outdoor use;
- Tilting opening system of the front panel to prevent ingress of air when the fan is OFF;
- External grille designed to reduce the outside noise;
- 250 mm minimum wall depth for the wall version and 300 mm for the built-in version. 3m maximum wall depth (2.5 m in case of 90° curve).
- Standard duct lenght 500 mm. 1000 mm lenght available as an accessory.
- DC ball bearing motorimpeller, brushless with electronic commutation;
- Long life and low energy consumption;
- Easy cleaning and maintenance;
- Double dust filter, washable and easy to access;
- IPX4 protection degree;
- Led indicator for functions and filter cleaning;
- Humidity and twilight sensors (active, wireless and app versions);
- The last set function is saved and automatically restored in case of interruption of the power supply;
- Caps for pipe in case of future installation in the construction site;
- No condensation drainage required;
- Working Temperature Range: – 30°C + 50°C.
- Possibility to change standard filters with optionals(only Ø160).
O.TECH APP version is equipped with:
Wi-fi communication 2,4Ghz between the units;
- iOS and Android O.TECH App,
- Possibility to control the units via Smartphone thanks to the O.app even remotely;
- Connection to weather stations to monitor the temperature humidity and air quality parameters of the outside air;
- Integrated humidity, twilight, temperature and VOC sensors which allows several modes of automatic operation;
- SMART mode which allows the comparison of inside and outside air quality data thanks to the connection to the nearest weather station. This will allow the product to adjust automatically its functioning according to the detected parameters;
- Possibility to configure up to 16 units inside the system via APP;
- 4 adjustable speeds (including 1 night speed).
Can be installed either wall-mounted or built-in with the dedicated Built-in Kit:
NEW MODEL CONFIGURATION CAN FIND HERE:
OERRE_New configuration Ghost-U
| Product Type | Heat recovery unit, Heat recuperator, Supply unit, Supply valve |
|---|---|
| Brand | |
| Model | |
| Application | Home, Living quarters, Office, Supply and exhaust ventilation, Supply ventilation, Workspaces |
| Color | |
| Material | |
| Max. power (W) | |
| Voltage (V) | |
| Phase (Ph) | |
| Frequency (Hz) | |
| Max. capacity (m³/h) | |
| Max. Pressure (Pa) | |
| Max. noise level (dB) | |
| Features | Air Filtration, Air Quality Sensor, Control by smartphone, Display, Humidity Sensor, Speed Control |
| Installation Type | |
| Type of channel | Round |
| Protection class (IP) | |
| Min. temperature (°C) | -30 |
| Max. temperature (°C) | 50 |
| Duct diameter (mm) | 160 |
| Width (mm) | |
| Height (mm) | |
| Depth (mm) |
Technical Drawing
