Product Description
- Wall fan with circular inlet connection.
- KV has a square mounting plate.
- Proven performance and reliability.
- Compact with high capacity and efficiency.
- Suitable for a wide variety of applications.
- Operational in both 50 and 60 Hz.
- Impeller with backward curved blades.
- The external rotor motor has maintenance-free sealed ball-bearings.
- Integrated motor protection.
- Junction box has enclosure class IP 54.
- For speed control a transformer or electronic speed controller can be connected.
- Fan housing is manufactured from galvanized sheet steel.
- The fan is intended to be installed in a duct system, mounted on the inside wall.
- Easy installation in any position.
- Can be used in damp environments.
Technical Data
| KVFU 125 A man tp 7100042 |
KVFU 125 A aut tp 7100094 |
|||
| Parameter | Value | Unit | Value | Unit |
| Voltage | 230 | V | 230 | V |
| Phase | 1 | ~ | 1 | ~ |
| Frequency | 50 | Hz | 50 | Hz |
| Power | 41 | W | 41 | W |
| Current | 0.18 | A | 0.18 | A |
| Speed | 1970 | r.p.m. | 1970 | r.p.m. |
| Max. temperature of transported air | 80 | °C | 80 | °C |
| Max. temperature of transported air when speed controlled | 80 | °C | 80 | °C |
| Sound pressure level at 3 m | 40 | dB(A) | 40 | dB(A) |
| Weight | 2.5 | kg | 2.5 | kg |
| Enclosure class | 44 | IP | 44 | IP |
| Insulation class, motor | F | F | ||
| Capacitor | 3 | µF | 3 | µF |
| Duct connection | 125 | mm | 125 | mm |
| Max. flow | 99 | l/s | 356 | m3/h |
| Max. pressure | 303 | Pa | 303 | Pa |
| Voltage range | 220-240 | V | 220-240 | V |
Downloads
Manuals
SV_EN_DE_Manual_standard_1270002u20.pdf
EU Declarations
EU Declaration Fans u7 Eng.pdf
Product Declarations
BVD1_u4 CK_CV_KV_RKC_LPK_RF_DF_RB
3D drawings

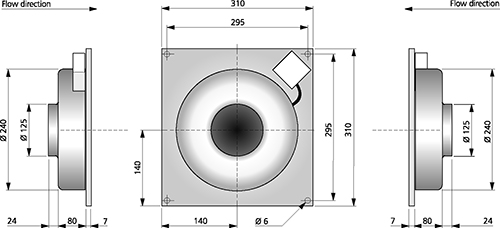

Dimensions
