Product Description
- Roof fan with circular connection.
- Horizontal outlet.
- High performance and proven reliability.
- Operational in both 50 and 60 Hz.
- Impeller with backward curved blades.
- The external rotor motor has maintenance-free sealed ball-bearings.
- Integrated motor protection.
- Junction box has enclosure class IP 54.
- For speed control a transformer or electronic speed controller can be connected.
- Fan housing is manufactured from galvanized sheet steel which is polyester plastic coated in black as standard.
- Swing-up design to simplify maintenance and cleaning of the impeller.
- The fan complies with environmental requirement M2.
Technical Data
| TKC 300 C Black w cable 7200057 |
TKC 300 C Brick red w cable 7200103 |
|||
|---|---|---|---|---|
| Parameter | Value | Unit | Value | Unit |
| Voltage | 230 | V | 230 | V |
| Phase | 1 | ~ | 1 | ~ |
| Frequency | 50 | Hz | 50 | Hz |
| Optional frequency | 60 | Hz | 60 | Hz |
| Power | 60 | W | 60 | W |
| Current | 0.26 | A | 0.26 | A |
| Speed | 2510 | r.p.m. | 2510 | r.p.m. |
| Max. temperature of transported air | 80 | °C | 80 | °C |
| Max. temperature of transported air when speed controlled | 80 | °C | 80 | °C |
| Sound pressure level at 3 m | 60 | dB(A) | 60 | dB(A) |
| Weight | 4.1 | kg | 4.1 | kg |
| Enclosure class | 44 | IP | 44 | IP |
| Insulation class, motor | F | F | ||
| Capacitor | 2 | µF | 2 | µF |
| Max. flow | 111 | l/s | 399 | m3/h |
| Max. pressure | 352 | Pa | 352 | Pa |
| Voltage range | 220-240 | V | 220-240 | V |
Downloads
Manuals
SV_EN_Manual_TKC_TKS_TKV_TKH_1270371u4.pdf
SV_EN_Installation_TFU_TG_1270370u1.pdf
EU Declarations
EU Declaration Fans u7 Eng.pdf
Product Declarations
3D drawings

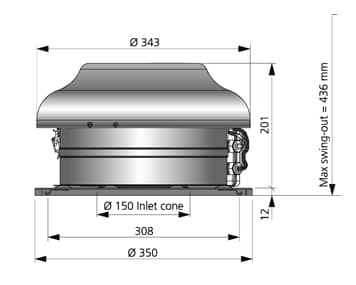

Dimensions
